Outrigger & Stability Systems
2 hours
Learning Objectives
- •Explain why outrigger deployment is the single most critical setup step for a mobile crane lift
- •Describe the four outrigger deployment configurations and how each affects rated capacity
- •State the ground-bearing-pressure principle and why outrigger pads are required
- •Identify the signs of inadequate ground support and what to do when conditions are suspect
Topics Covered

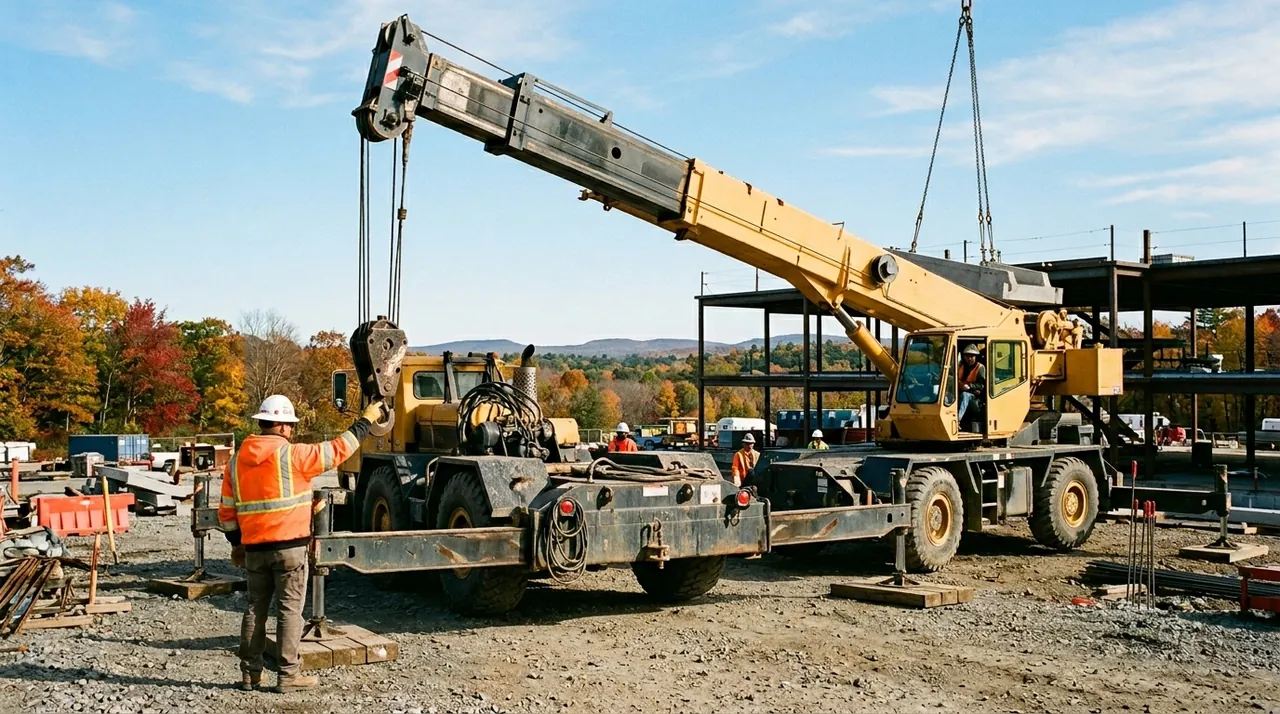

- •Outrigger anatomy: horizontal beam, vertical jack, outrigger pad (float)
- •Four outrigger positions: fully extended, mid-extended (50%), partially extended, and retracted (on rubber)
- •The load chart reflects outrigger position: always use the correct column for your actual setup
- •Fully extending all four outriggers: the only way to achieve maximum rated capacity
- •Why asymmetric outrigger extension is dangerous: the rated capacity may not apply in all swing directions
- •Leveling the crane: upper works must be within manufacturer's specified level tolerance (typically 1%)
- •Ground-bearing pressure: the force concentrated under each outrigger pad — can exceed 50 tons
- •Outrigger pads (floats/cribbing mats): distribute load over a larger area to stay within soil bearing capacity
- •OSHA 1926.1402: ground must be firm, drained, and graded; controlling entity is responsible for site prep
- •Subsurface hazards: buried utilities, voids, septic tanks, old foundations — always get subsurface info
- •Signs of failing ground: outrigger sinking, leaning, cracking ground, outrigger float tilting
- •What to do if ground gives way: stop the lift, lower the load to the ground, evacuate area, reassess
- •Tipping axis: the line between two adjacent outrigger contact points — never let the load moment cross it
Resources
Self-Check Questions
Question 1: You set up the crane with three outriggers fully extended but one outrigger only 50% extended due to a nearby trench. You select the "fully extended" column in the load chart for your lift. Is this correct?
- A. Yes — three fully extended outriggers provide enough stability for a full-capacity lift
- B. No — you must use the column matching your most restricted outrigger position, or the appropriate asymmetric chart if one exists(correct)
- C. Yes — as long as the 50% outrigger is on the opposite side from the lift
- D. No — asymmetric outrigger extension voids the load chart entirely and you cannot lift
Show Explanation
Explanation:
The rated capacity depends on outrigger position. If outriggers are not uniformly extended, you must use the more conservative capacity that matches your actual configuration or consult the manufacturer's asymmetric lift chart. Using the "fully extended" column with a partially extended outrigger can put you well over the actual safe capacity.
Question 2: Under OSHA 1926.1402, who is responsible for ensuring the ground conditions at a construction site meet crane operational requirements?
- A. The crane operator, since they are the competent person for the lift
- B. OSHA, which must inspect the site before any crane set-up
- C. The controlling entity (the entity with overall authority over the project site)(correct)
- D. The crane rental company, since they own the equipment
Show Explanation
Explanation:
OSHA 1926.1402 places primary responsibility for ground conditions on the controlling entity — the employer with authority over the site. The operator must notify the controlling entity if conditions appear inadequate, but the controlling entity is responsible for arranging necessary ground preparation.
Question 3: Why must outrigger pads (floats or mats) be used even when the ground appears solid?
- A. OSHA requires pads on all lifts regardless of ground conditions
- B. Pads distribute the concentrated outrigger jack load over a larger area, reducing ground-bearing pressure to within the soil's capacity(correct)
- C. Pads protect the outrigger jack faces from corrosion and impact damage
- D. Pads are required only on asphalt or concrete surfaces
Show Explanation
Explanation:
An outrigger jack concentrates enormous force — often 50+ tons — onto a small metal plate. Ground-bearing pressure under the jack tip can far exceed the soil's capacity. A properly sized pad spreads that load over a much larger area, reducing pressure to a safe level. Even seemingly solid ground can punch through without adequate padding.
Question 4: During a lift, you notice the ground under the rear-left outrigger has cracked and the pad is slowly sinking. What is the correct immediate action?
- A. Complete the lift quickly before conditions worsen
- B. Lower the boom angle to reduce outrigger loading, then reassess
- C. Stop the lift, lower the load to the ground, evacuate the area near the outrigger, and do not resume until conditions are corrected(correct)
- D. Call the crane manufacturer's hotline for guidance before taking any action
Show Explanation
Explanation:
Ground failure under an outrigger is an emergency. The immediate priority is to lower the load safely and get personnel away from the area — a crane tip-over happens in seconds once the tipping axis is crossed. Do not attempt to complete or continue any lift until ground conditions are corrected.
Question 5: What does it mean to "level the crane" and why is it required?
- A. Lowering the boom to horizontal before driving to a new position on site
- B. Adjusting the outrigger jacks until the crane upperworks is within the manufacturer's specified out-of-level tolerance (typically ≤1%)(correct)
- C. Balancing the counterweight against the boom weight before a lift
- D. Checking that all four outrigger beams extend to equal length
Show Explanation
Explanation:
Load charts are calculated for a level crane. Even a small out-of-level condition shifts the load's effective radius and changes the balance point, potentially putting the crane into a lower capacity column or worse. Manufacturers specify maximum allowable tilt (often 1%) — if you exceed it, the load chart no longer applies.
Question 6: What is the "tipping axis" on a mobile crane set up on outriggers?
- A. The centerline of the boom along which loads are balanced
- B. The imaginary line connecting two adjacent outrigger contact points, about which the crane would rotate if it tips(correct)
- C. The hydraulic axis of the luffing cylinder when the boom is at 45 degrees
- D. The vertical axis of the swing bearing
Show Explanation
Explanation:
The tipping axis is the line between two adjacent outrigger pad contact points. If the overturning moment from a load pushes the center of gravity beyond this line, the machine will rotate about it — tipping over. All rated capacity calculations ensure the load moment does not push the CG beyond the tipping axis with adequate margin.
