Operating Hazards — SAE Hand Signals & Site Safety
1 hour
Learning Objectives
- •Demonstrate the 8 standard SAE hand signals required by 230 CMR 6.00
- •Identify operating hazards specific to excavating equipment
- •Explain utility location requirements before digging
- •Apply swing radius and exclusion zone rules on a job site
Topics Covered
- •SAE J1307-2023: the standard hand signal set required by MA 230 CMR 6.00
- •Key hand signals: Raise/Boom Up, Lower/Boom Down, Swing, Travel, Stop, Emergency Stop, Move Bucket In/Out
- •Emergency STOP signal: crossed arms across chest — all operators must respond immediately

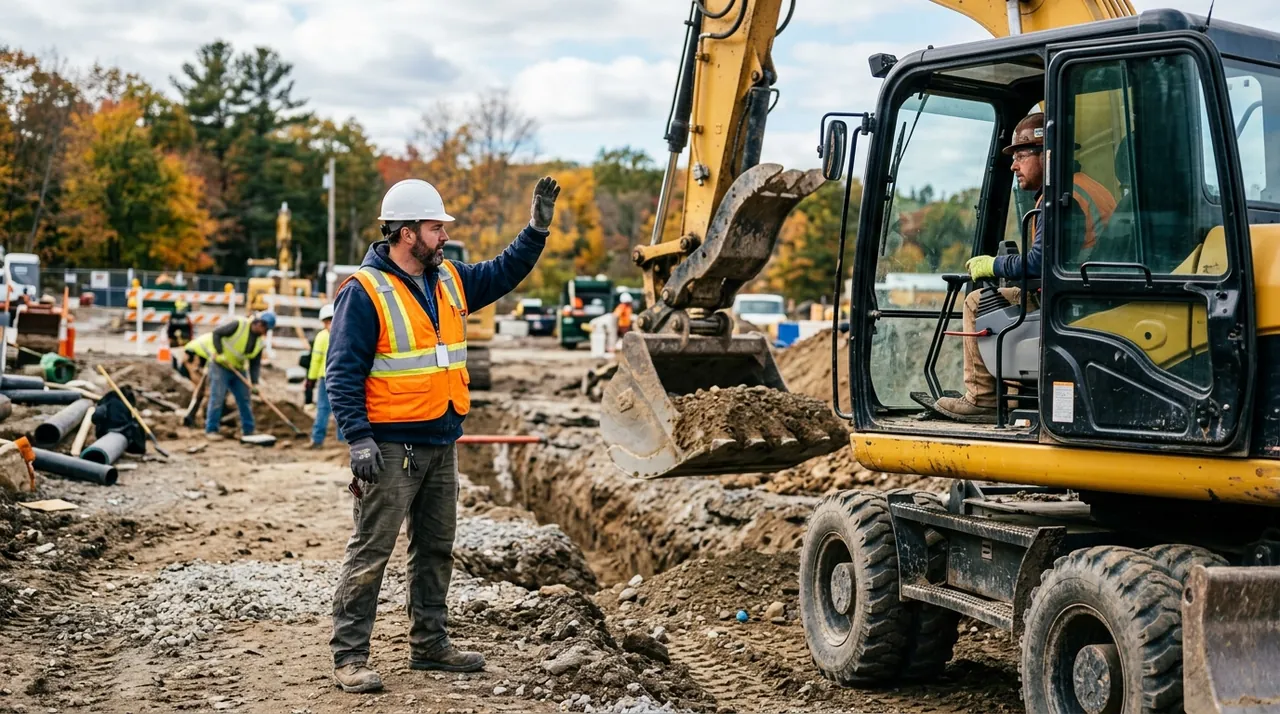

- •Signaler positioning: must be visible to operator at all times; never in swing radius
- •Utility location (Dig Safe): call 811 before any digging — required by MA law
- •Swing radius exclusion zone: no persons in the full working radius during operation
- •Trench edge proximity: do not position tracks within 2x the trench depth from edge
- •Prohibition on straddling open trenches (230 CMR 6.00)
- •Electrocution hazard: maintain minimum 10-foot clearance from energized overhead lines
- •Excavator stability: avoid sudden stops during swing with a loaded bucket
- •Slope operation: position boom downhill when possible for stability
- •Blind swing areas: use spotters; use mirrors and cameras but never rely on them alone
Resources
Self-Check Questions
Question 1: What is the universal Emergency STOP hand signal recognized under SAE J1307?
- A. One hand raised with palm facing out
- B. Both arms raised above the head
- C. Crossed arms held in front of the chest(correct)
- D. Rapid up-and-down motion with one hand
Show Explanation
Explanation:
Crossed arms across the chest is the universally recognized Emergency STOP signal. Every operator on site must respond immediately to this signal — there are no exceptions and no delays are acceptable.
Question 2: Before digging on any Massachusetts job site, what must the operator or contractor do?
- A. Call 811 (Dig Safe) and wait for utility locations to be marked(correct)
- B. Check the property deed for any listed easements
- C. Notify the local police department of excavation plans
- D. Nothing additional is required if the site plan shows no utilities
Show Explanation
Explanation:
Massachusetts law requires calling 811 (Dig Safe) before any excavation. Utilities must be located and marked before digging begins — failure to call before you dig can result in fines, liability for damage, and worker fatalities from struck utilities.
Question 3: What is the minimum clearance an excavator must maintain from energized overhead power lines?
- A. 5 feet
- B. 8 feet
- C. 10 feet(correct)
- D. 15 feet
Show Explanation
Explanation:
OSHA requires a minimum 10-foot clearance from energized overhead lines at voltages up to 50kV. Higher voltages require greater clearance. If the excavator cannot maintain 10 feet, the utility must be de-energized or insulated before work begins.
Question 4: The signaler for your excavator steps away to answer a radio call, leaving no one visible to direct you. You still have digging to complete. What should you do?
- A. Continue working carefully until the signaler returns
- B. Ask a nearby worker to take over signaling
- C. Stop all machine movement until the designated signaler returns(correct)
- D. Use the horn to signal your intentions and proceed
Show Explanation
Explanation:
230 CMR 6.00 requires an approved signaler who is visible to the operator at all times. If the signaler is unavailable or not visible, all movement must stop. An informal substitute is not permitted — only the designated, approved signaler may direct the operator.
Question 5: How far should excavator tracks be positioned from the edge of an open trench?
- A. At least 2 feet from the edge
- B. At a distance no less than twice the depth of the trench(correct)
- C. At the edge is acceptable if tracks are on solid ground
- D. No minimum distance — the competent person judges each situation
Show Explanation
Explanation:
A commonly applied rule of thumb is to position tracks no closer than twice the depth of the trench from its edge. This prevents the machine's weight from adding surcharge load that could trigger a cave-in. Some references use 2 feet minimum, but the twice-depth rule is more protective on deeper excavations.
Question 6: An excavator operator is swinging a loaded bucket when the signaler gives the Stop signal. What is the correct response?
- A. Complete the current swing arc to a safe position, then stop
- B. Stop immediately, even mid-swing(correct)
- C. Slow down and finish lowering the bucket before stopping
- D. Acknowledge the signal and stop after the current task cycle
Show Explanation
Explanation:
A Stop signal requires an immediate halt to all movement. Completing the current arc or task cycle after receiving a Stop signal violates the signal protocol and could result in an injury. Only an Emergency Stop signal requires this level of immediate response, but the standard Stop signal is still an immediate command.
